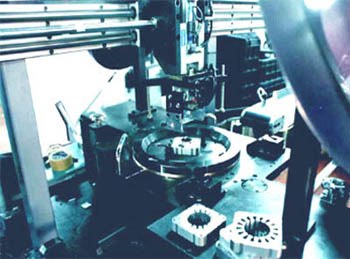

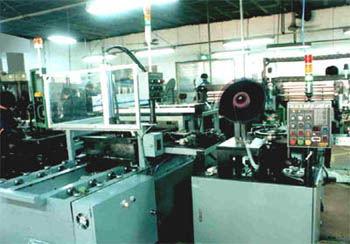

◎ INSULATING PAPER INSERTING MACHINE (FOR STATOR)

MODEL : MF-WI

* GENERAL DESCRIPTION

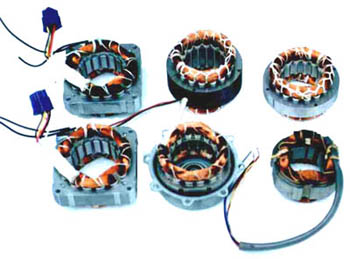

As shearing the insulating paper like tape properly and molding, this machine has the function to insert it to the slot of small size stator.

In addition, as this machine can be used for the stator, which the shape of stator is different as the two kinds of forms, and two pairs of die set are mounted, it is possible to insert the insulating paper to two kinds of slot at once.

(Regarding the same slot, the UPH of machine can be increased as much as twice, just because the insulating papers for two slots can be inserted at the same time.)

Especially this machine make it possible to insert and take the stator out automatically with loading the stator made in the press part into the carrier box (Quantities: 200~300EA).

* SPECIFICATION
- STATOR CORE DIMENSION
  INNER DIAMETER : MAX ø100mm
  OUTER DIAMETER : MAX ø160mm
  LOADING : 15∼100mm
  SLOT QT'Y : 8∼24

- INSULATING PAPER
  THICKNESS. : 0.18t
  WIDTH : MAX 120

 - INSERTING SPEED : Within 0.5 SEC/1 SLOT
