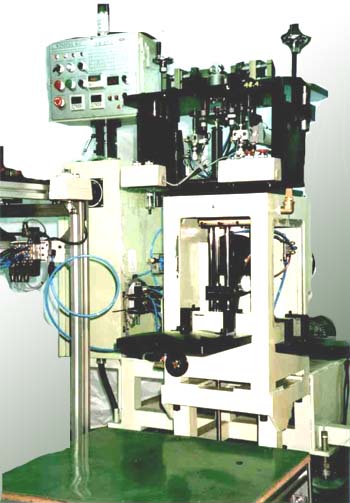

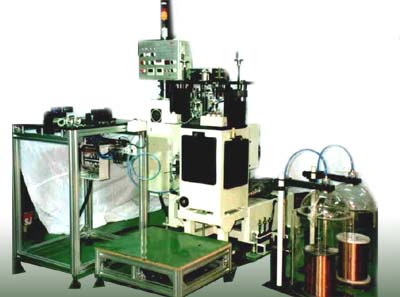

* GENERAL DESCRIPTION

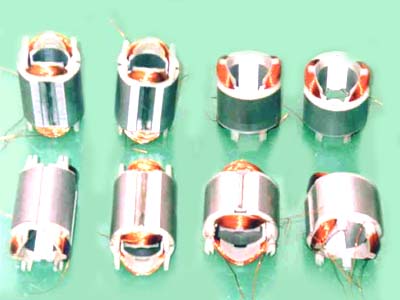

This machine is used for winding the field for the two slots of universal motor. The setting of jig can be done with one touch button and the change of loading length, angle is easy and The high speed winding is possible.

* SPECIFICATION
FIELD INNER DIA. : ø30∼40
OUTER DIA. : ø50∼60
LOADING : MAX 70
SLOT : 2 SLOT
CYCLE TIME : Within 160 TURN/40sec
OPTION : AUTOMATIC FORMER CHANGABLE DEVICE HAND
LOADER
ANGLE : 100°～140°, Adjustable
STROKE : 60 ～180 mm
POWER LINE : 3ø 220∇
MAIN MOTOR : 3.7 Kw
PUMP MOTOR : 0.4 Kw
AIR PRESSURE : 5Kgf/㎠
