* GENERAL DESCRIPTION

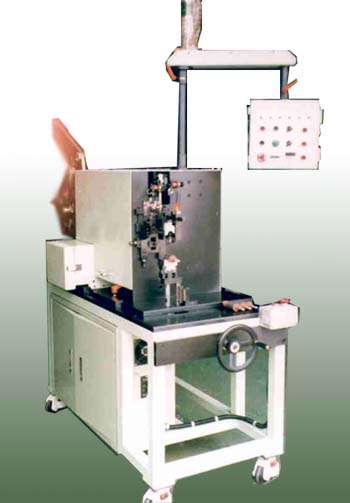

As this machine is used to automatically insert the insulating paper into the armature on the universal motor, the sheared length is proper with using motor and Cam and the working is possible as high speed.
The setting for the number of slot is changable with counter and the modification of jig is easily converted into toggle clamp.

ARMATURE CORE ; OUTTER DIA. : ø25～ø80mm
LOADING : MAX 100mm
SLOT QT'Y. : 6～24 SLOT
INSULATING PAPER WIDTH : 10～30mm
THICKNESS : OVER t0.12mm
MAIN MOTOR : 0.4Kw
