◎ AUTO SOLDERING MACHINE

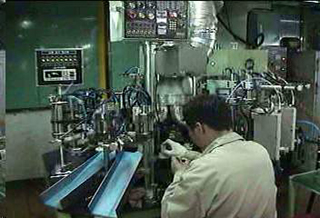

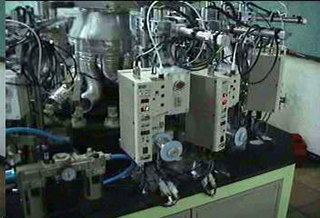

[ LAY - OUT ] [ SOLDERING CONTROLLER ]
MODEL : AM-AS

* GENERAL DESCRIPTION

This machine makes the soldering parts of 7 points to be soldered automatically.
The soldering parts 7 step, preheating 2 step, inspection 4 step, and the inspection after soldering are automatically performed with using the index table of 16 step so that the perfect product can be produced. Loading process is working in manual because the status of product is difficult.

CYCLE TIME : 1EA/4 sec

[preview]
300k

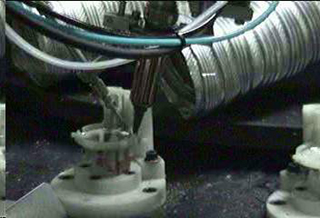

[ 1 POINT SOLDERING ]
