¡× Motor for Electric Power Tool Manufacturing Machine
   Insulating Paper Inserting Machine (for Field) | Insulating Paper Inserting Machine (for Armature)
   Field Winding Machine | Automatic Vibration Tester Line | Hand Grinder Universal Tester
   Automatic Stator Terminal Board Assembling Machine | Armature Wedge Shearing Machine

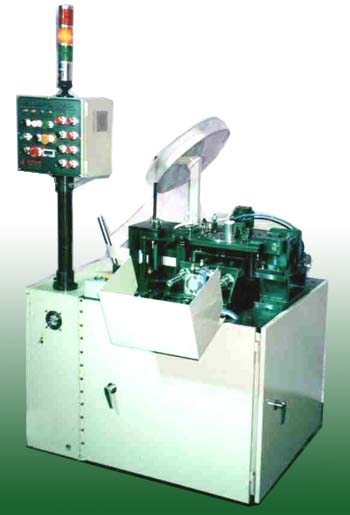

¡Ý INSULATING PAPER INSERTING M/C (FOR FIELD)


* GENERAL DESCRIPTION

As this machine is for inserting the insulating paper into the stator for two slots, shearing to the proper length with die set, molding, inserting is possible.

* SPECIFICATION
FIELD CORE INNER DIA : ©ª30¡­ ©ª50mm
OUTER DIA : ©ª50 ¡­ ©ª80mm
LOADING : MAX 100
SLOT : 2 SLOT
INSULATING PAPER WIDTH : 40 ¢¦ 100mm
THICKNESS : OVER 0.18t

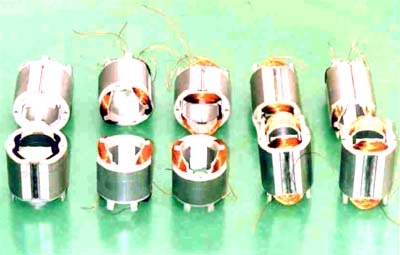

<SAMPLE> [preview]
