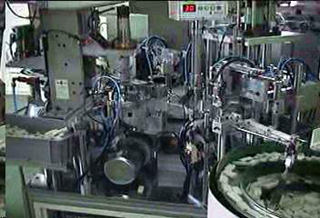

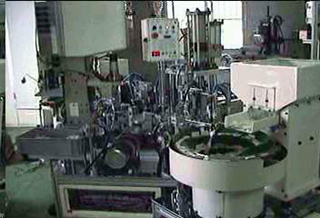

◎ 8 PIN CONNECTOR ASSEMBLING M/C
(MODEL : CA-8P)
* GENERAL DESCRIPTION
This machine automatically assembles the electronic connector and has the index table of eight steps. The process is same as the following.
1 STEP : CONNECTOR-UPPER INSERTION
(PARTS FEEDER)
2 STEP : IDLE
3 STEP : 8 PIN CUT INSERTION ( ROLL )
4 STEP : IDLE
5 STEP : CONNECTOR-LOWER INSERTION
(PARTS FEEDER)
6 STEP : ULTRA SONIC ADHESION
7 STEP : TAKE OUT
8 STEP : IDLE
* CYCLE TIME : 3sec/1EA
